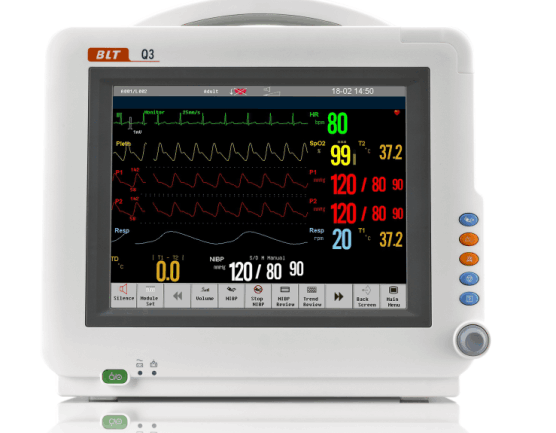

Q3-Series
Various software functions meet clinical requirements
Short trend
Maximum 168 hour graphic and tabular trends
Other bed
Display other bedside monitor’s all parameter and one waveform, support user defined parameter display
12 lead ECG
Capture and review diagnostic 12-lead ECG waveform at one screen
Oxy-CRG Screen
Oxy-cardiorespirography combines the compressed trends of heart rate, respiration, and oxygenation levels in an easy to interpret display. Oxy-CRG is an indicator of breathing efficiency and brain maturity.
| Q7 – 15″ TFT LCD, Resolution 768 * 1024 | Module Slot: 3 |
| Q5 – 12.1″ TFT LCD, Resolution: 800 * 600 | Module Slot: 2 |
| Q3 – 10,4″ TFT LCD, Resolution: 800 * 600 | Module Slot: 2 |
For all Q series modular monitor:
Standard Configuration: 3/5 lead ECG, RESP, SpO2, PR, NIBP, 2-Temp, Litium battery, Touch Screen (Q7 only)
Option Module: 2-IBP, Masimo SpO2, Nellcor SpO2, Suntech NIBP, Sidestream / MicroFlow / Mainstream EtCO2, Mainstream / Sidestream AG, C.O..
Other option: 12 lead ECG, Printer, Rolling stand, Wall mount, VGA, External Display, WIFI, SD Memory card, Analog Output (ECG or IBP), Touch Screen (Q5/Q3)
Advanced parameters trough easy upgrades
Fastest response time at the highest sensitivity, unmatched reliability during challenging conditions of motion and low perfusion.
Developed based on more than 25 years medical research of BP measurement, according to the clinical test result SunTech Advantage NIBP technolofy show highly accutate.
Sidestream/Microstream/Mainstream EtCO2 is optional. Various option can be suitable for intubated patient, ventilation relied on patient, non-intubated patient.
Anasthesia Gas module, measure concentration of Et and Fi CO2, O2, N2O and ISO, ENF, DES, SEV, HAL
Max. 8 IBP measurement with waveform, Systoic, Diastolic, Mean Pressure on ART, CVP, ICP, PA, LAP etc to fulfill different positions invasive blood pressuremeasuring demands.
Enables hemodynamic monitoring using thermo dilution method. Provides an important measurement of the blood flow and oxygen delivery to the tissues.
Other option: 12 lead ECG, Printer, Rolling stand, Wall mount, VGA, External Display, WIFI, SD Memory card, Analog Output (ECG or IBP), Touch Screen (Q5/Q3)
User Friendly Design for Convenient Operation
- Q series monitor was designed to meet the requirements of various hospital environments. The parameters of the main unit fit every standard monitoring demand. The optional modules upgrade the Q series monitor to suit acute care monitoring.
- Q series monitors built-in recorder and automatic event recording function guarantee the integrity of monitoring data.
- Q series monitor intuitive interface includes mass alarm set up, lager front and view-other bed functions. This interface together with the touchscreen, rotary knob and customized quick key make the Q series exceptionally user-friendly.
- Q series is applicable for Emergency Room, General Ward, Operation Room, ICU, etc.
- Oxy-cardiorespirography combines the compressed trends of heart rate, respiration, and oxygenation levels in an easy to interpret display. Oxy-CRG is an indicator of breathing efficiency and brain maturity.
- Low power consumption and fanless design, can achieve high requirements of dust-off & without noise & pollution-free in clinical departments.
- Various expandable interfaces: VGA output, Ethernet, USB*2, Defib Sync, Nurse Call, Extension Module Rack.
- Q series achieve long time monitoring of vital sign stably by using BM100A all-in-one module engine.
- Optimized circuit design, reduce energy consumption, Battery run time increase 25 %
Other option: 12 lead ECG, Printer, Rolling stand, Wall mount, VGA, External Display, WIFI, SD Memory card, Analog Output (ECG or IBP), Touch Screen (Q5/Q3).
