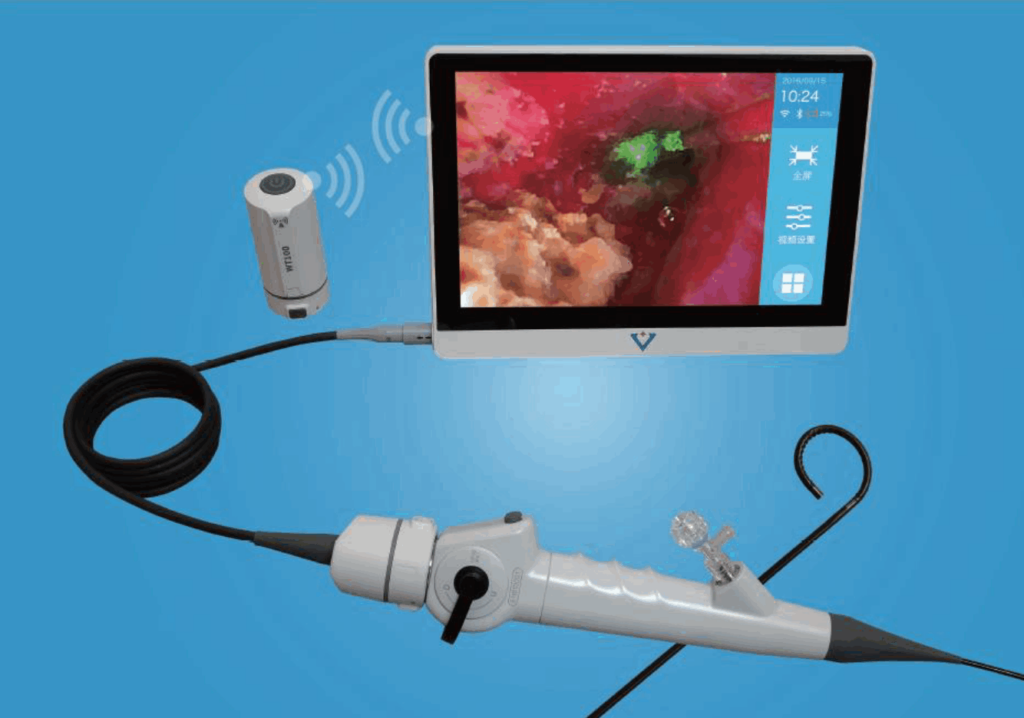

Rhino-Laryngoskop

1 1334x936 1
  • Wireless Video Transmission
  • No Optical Fiber
  • Handheld, Portable, Easy use
  • Integrated unify display system. Portable for easy use
  • Wireless video signal transmission
  • Big working channel
specificationsEF28EF30EF38EF45
Field of View120°120°120°120°
Depth of View Field3 mm – 200 mm3 mm – 200 mm3 mm – 200 mm3 mm – 200 mm
Range of Tip Bending(U) 180°
(D) 130°
(U) 180°
(D) 130°
(U) 180°
(D) 130°
(U) 180°
(D) 130°
Outer Diameter of Insertion Tube 2.8 mm 3.0 mm 3.8 mm 4.5 mm
Inner Diameter of Instrument Channel/ 1.2 mm/ 2.2 mm
Working Lenght365 mm365 mm365 mm365 mm
